| BRAND | Planetroll |

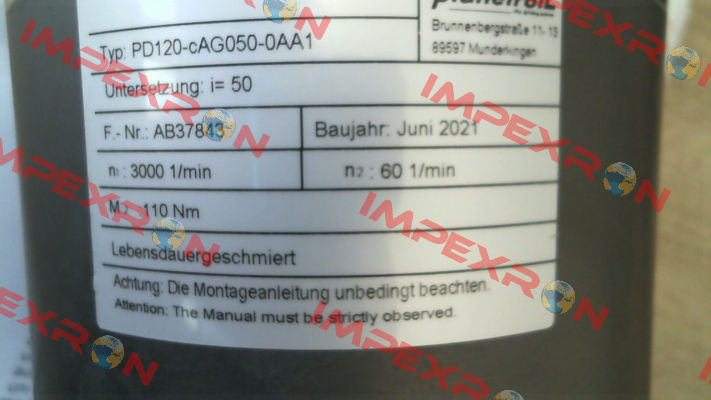

| Product | PD120-CAG050-0AA1 (603-02641) |

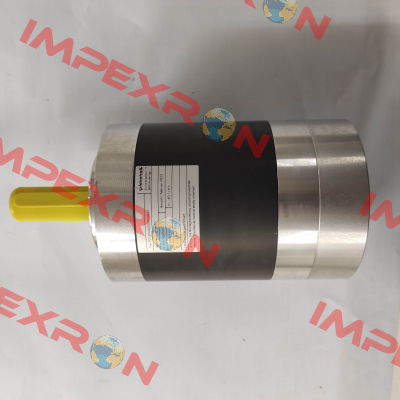

| Description | 2-stage planetary gear |
| Internal code | IMP377617 |
| Weight | 32 |
| Custom code | 84834029 |
| Technical specification | PD120 reduction ratio: i = 50 Twist play: </= 15 arcmin drive side: Flange code: 120AG19/24 Drive hollow shaft: Ø24 with reducer Ø24/Ø16 Centering: Ø80 4x M6 on TK100 Output side: Centering: Ø80H7x10 4x M8x16 on TK100 Output Shaft: Ø25k6 x 50 Half feather loaded Nominal torque: T2nN = 110 Nm at n1 = 3000 rpm Surface: ring gear black |
Please Contact Us to Order to offer competitive prices and delivery time for Planetroll - PD120-CAG050-0AA1 (603-02641) 2-stage planetary gear number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in Malaysia Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
